Raw orbital data (a, e, I)

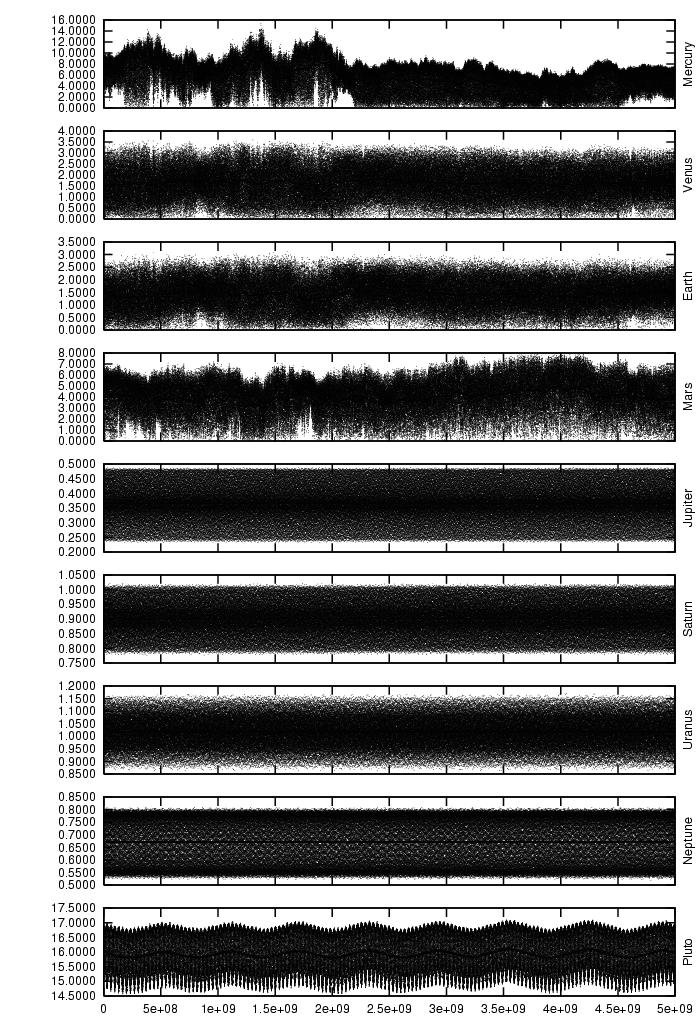

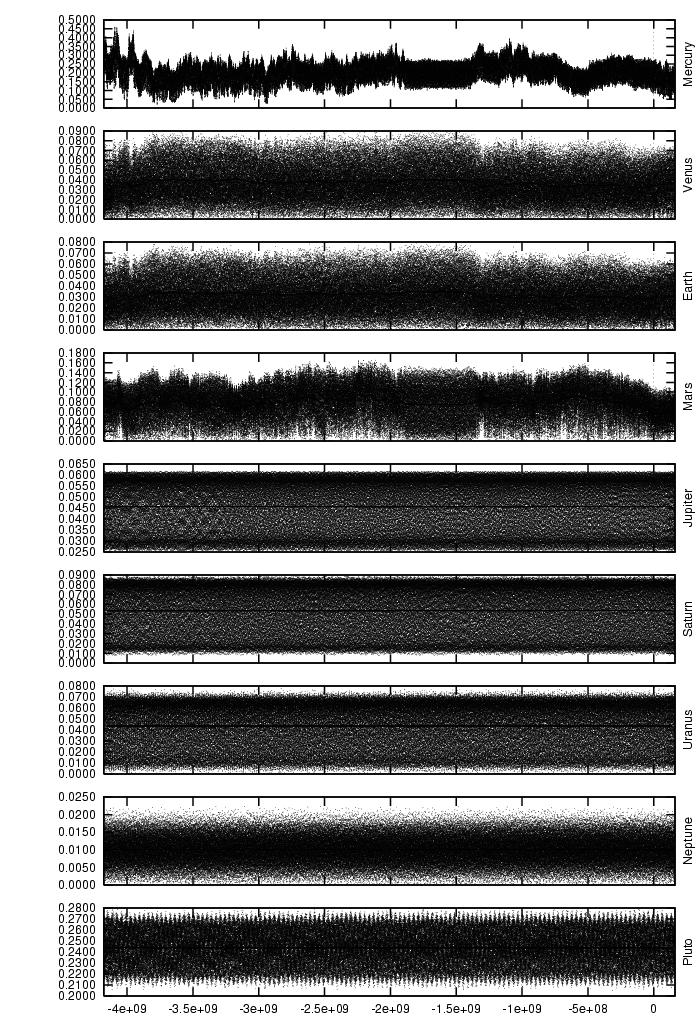

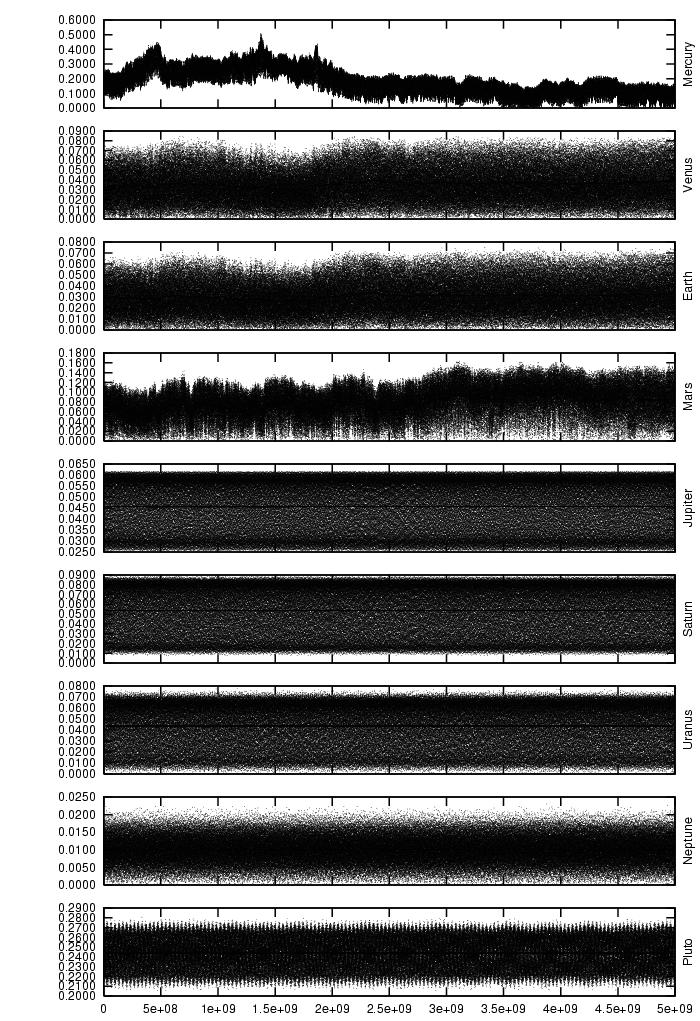

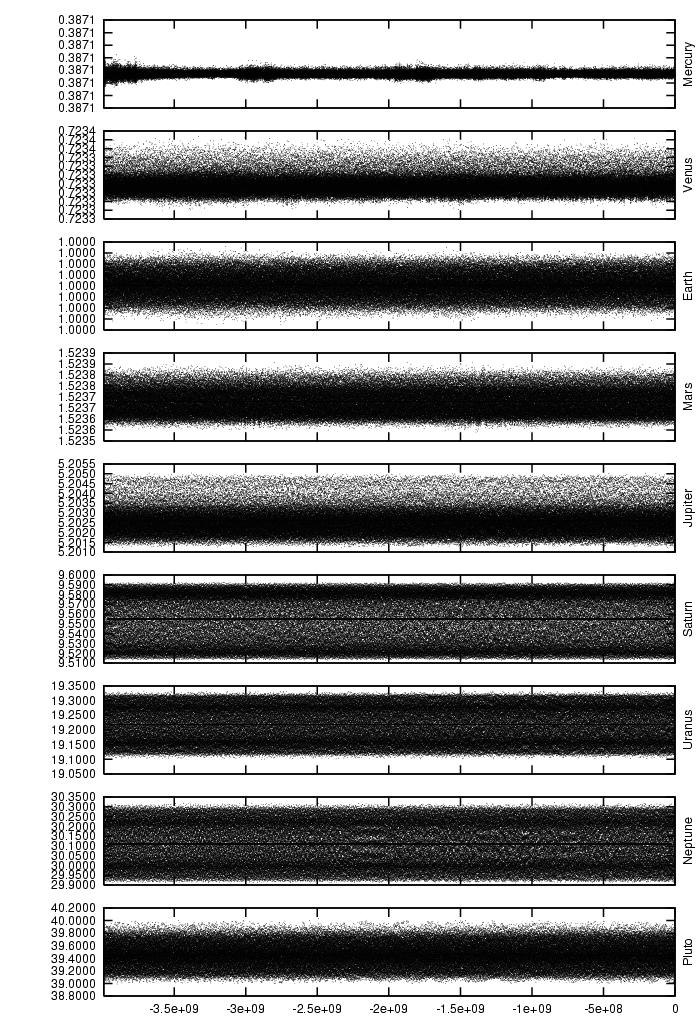

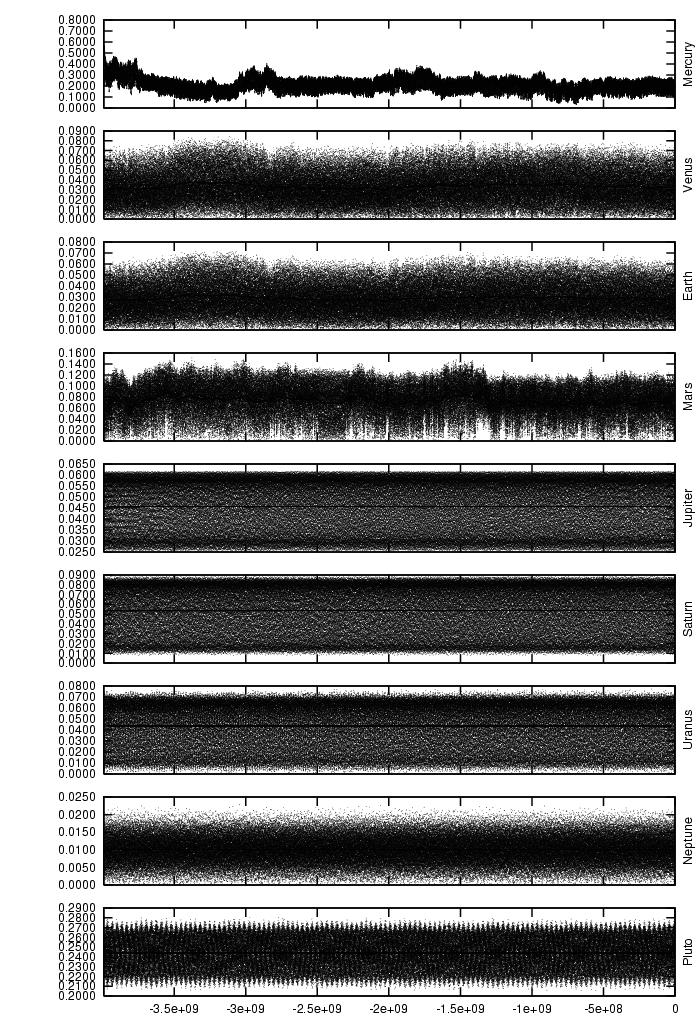

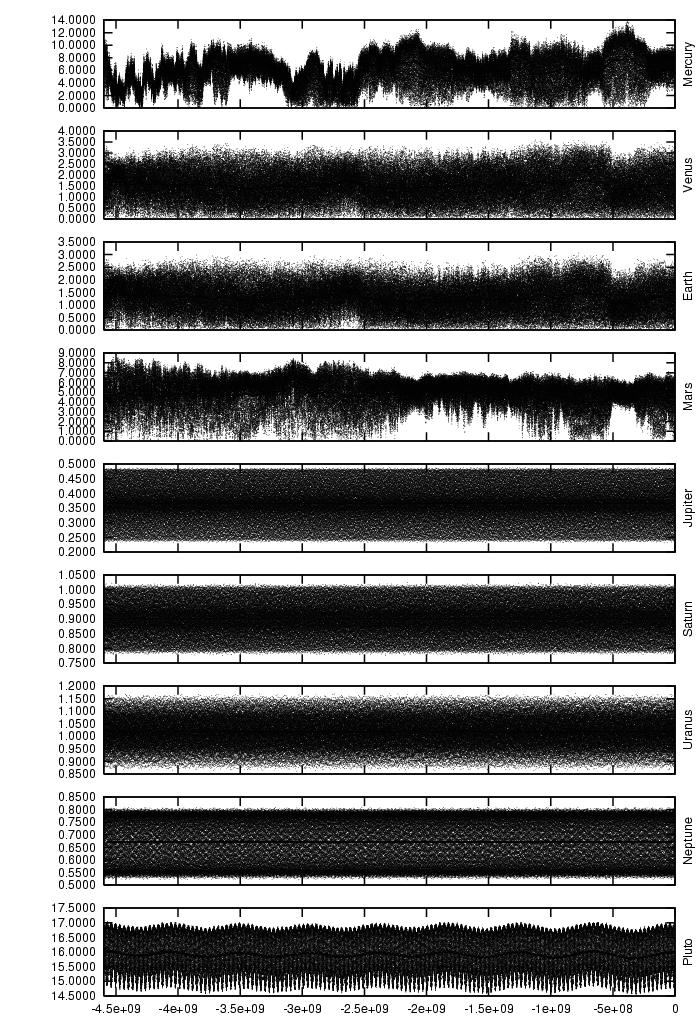

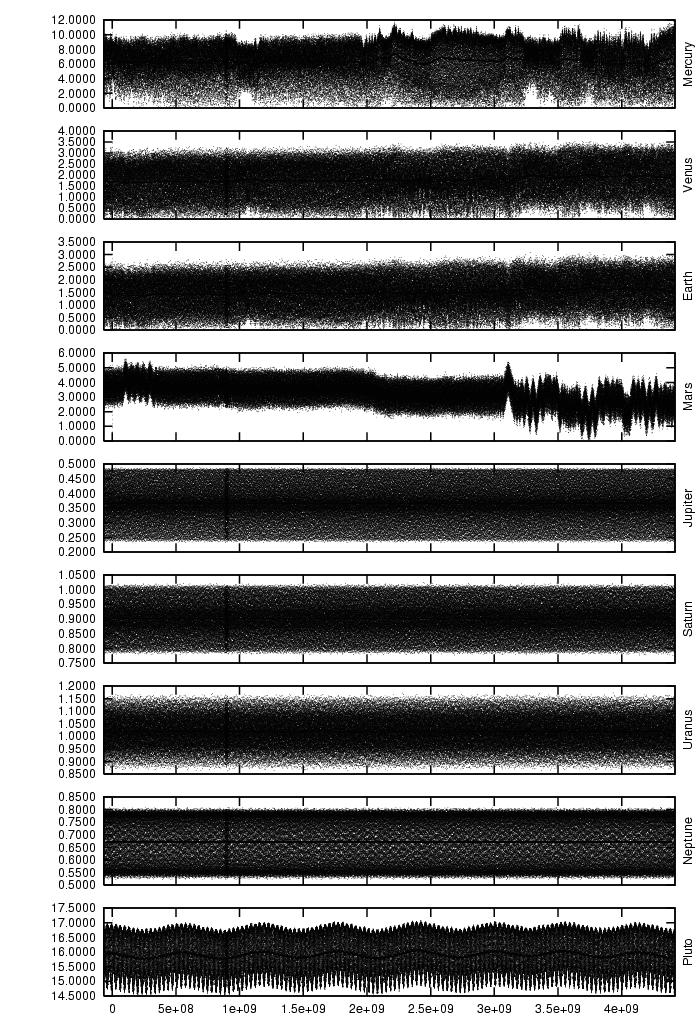

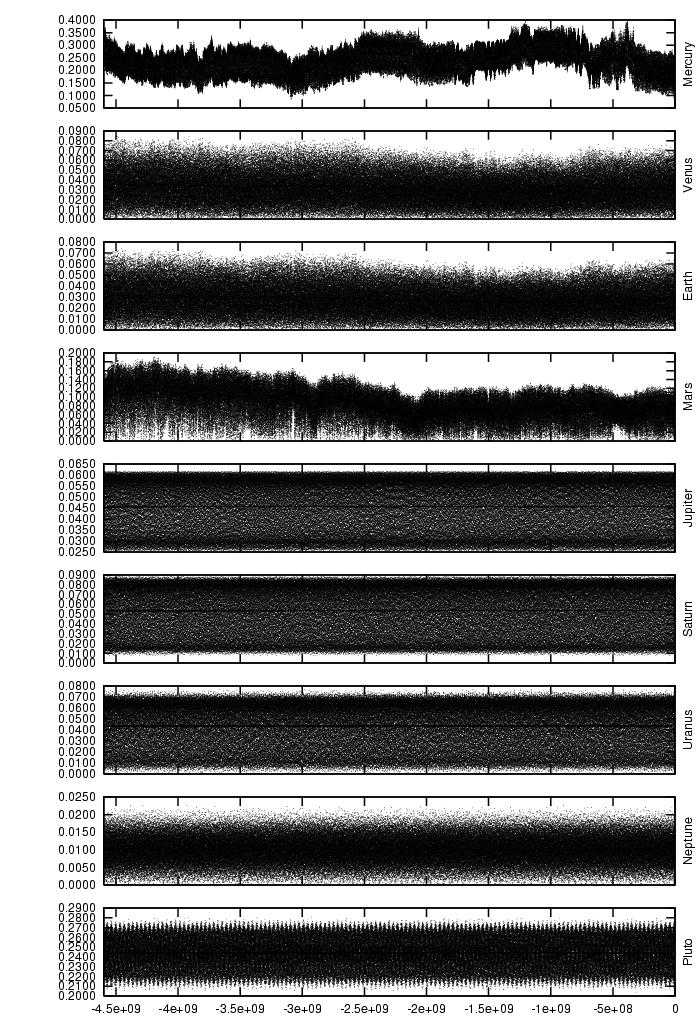

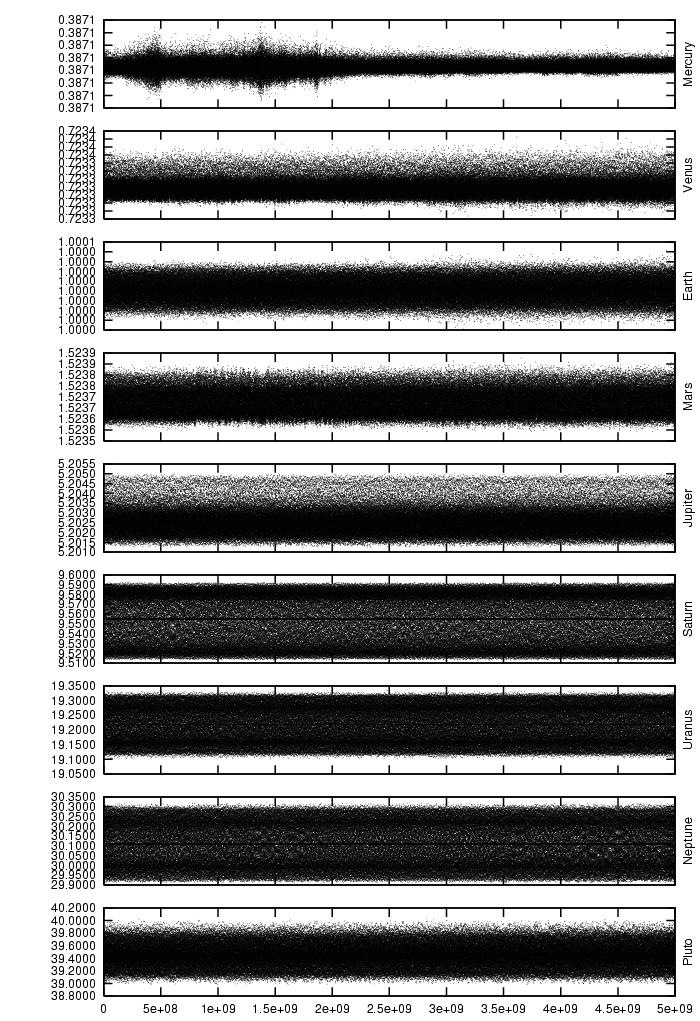

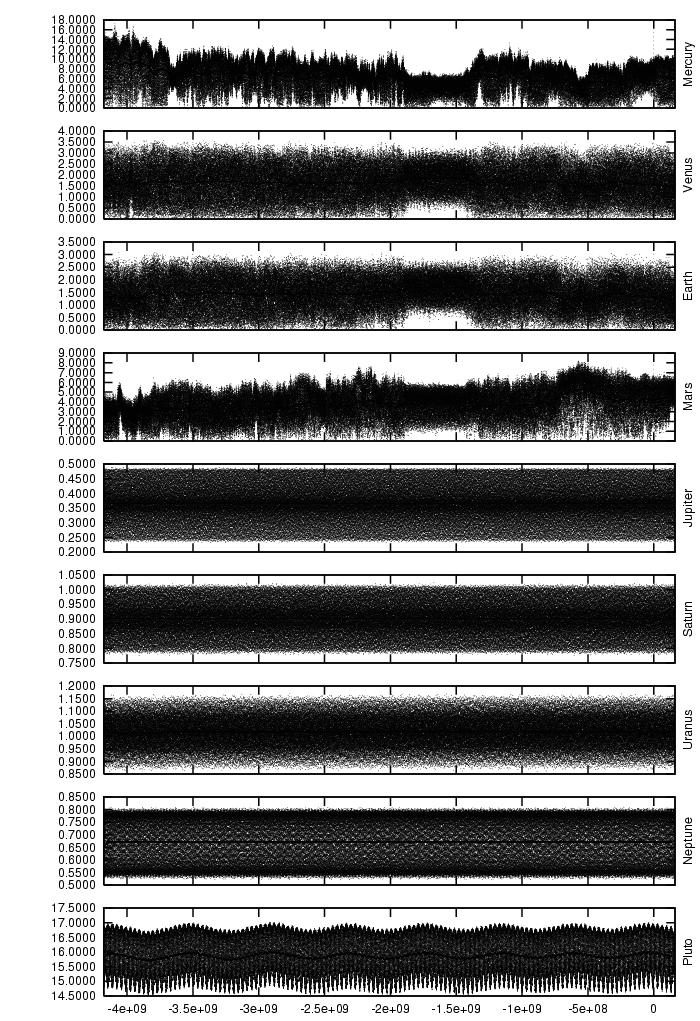

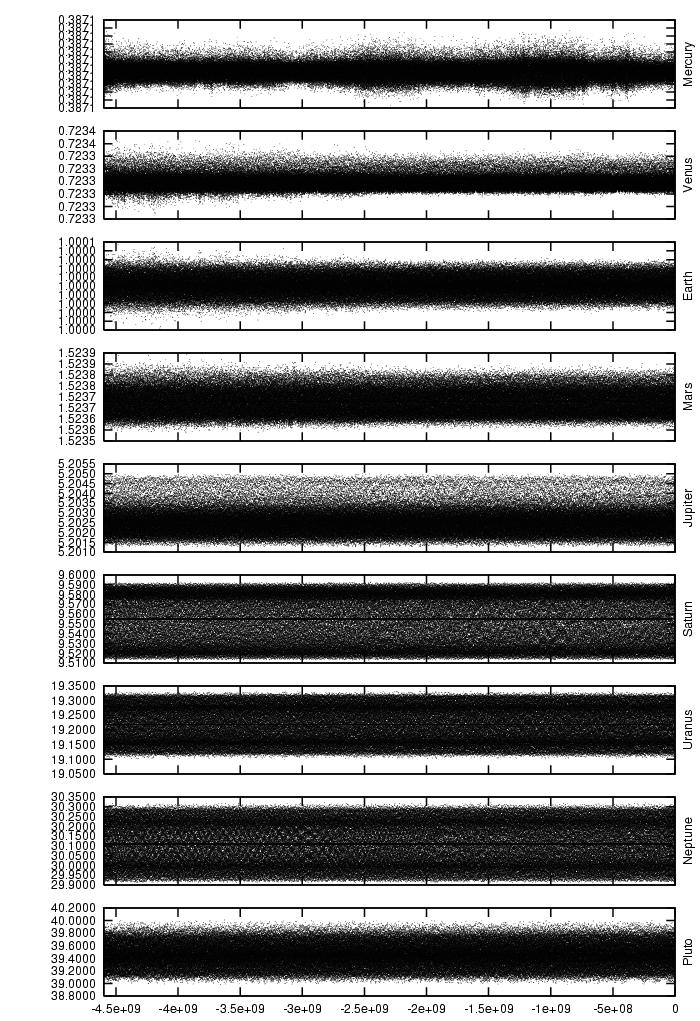

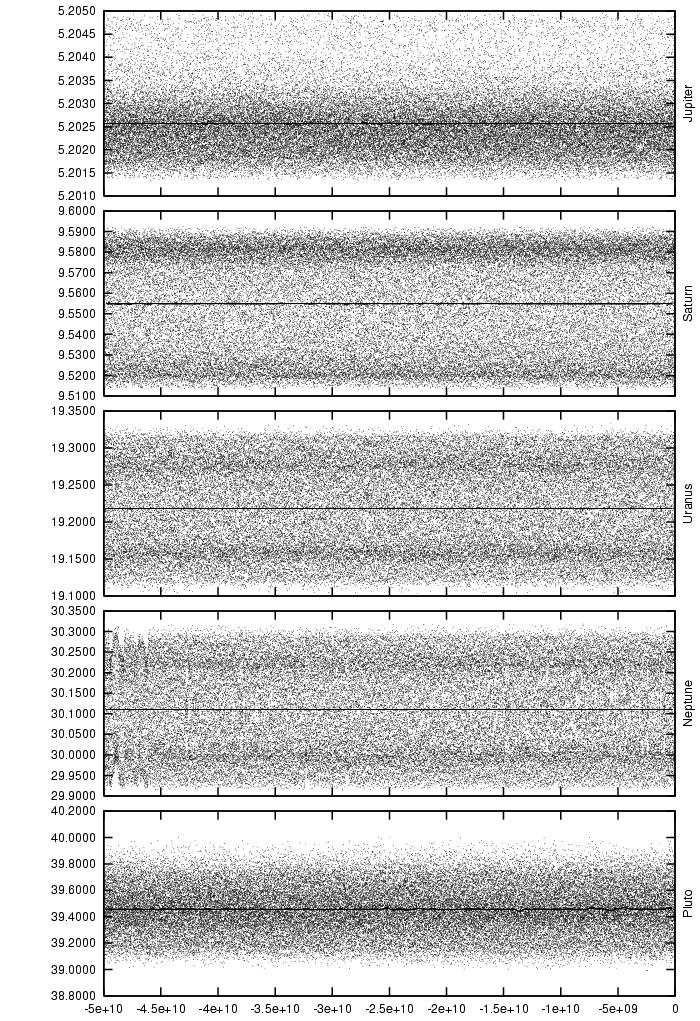

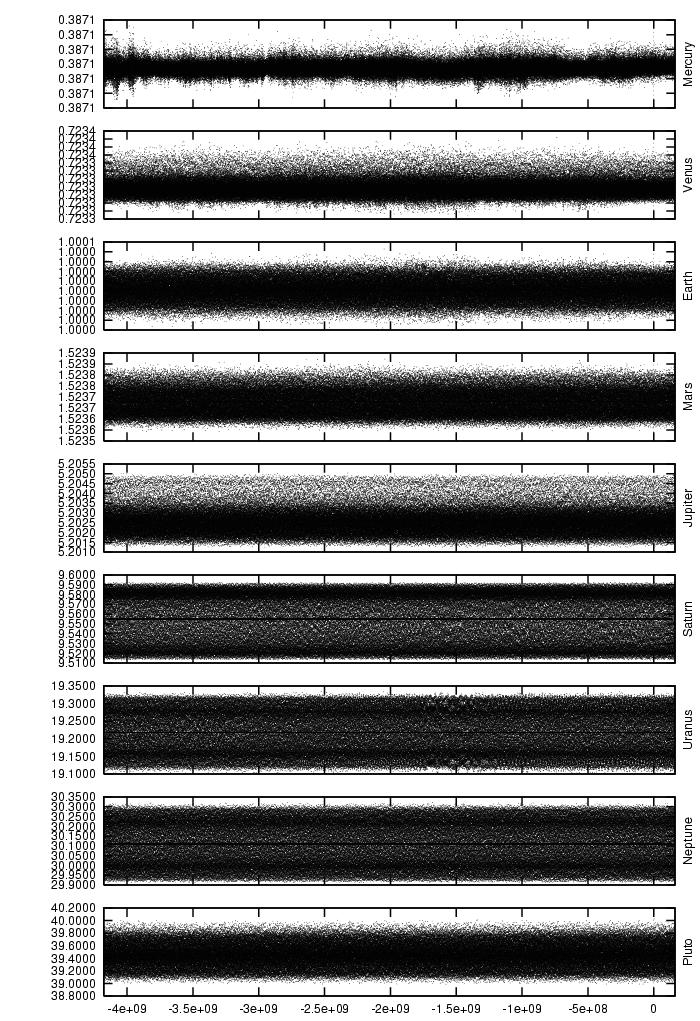

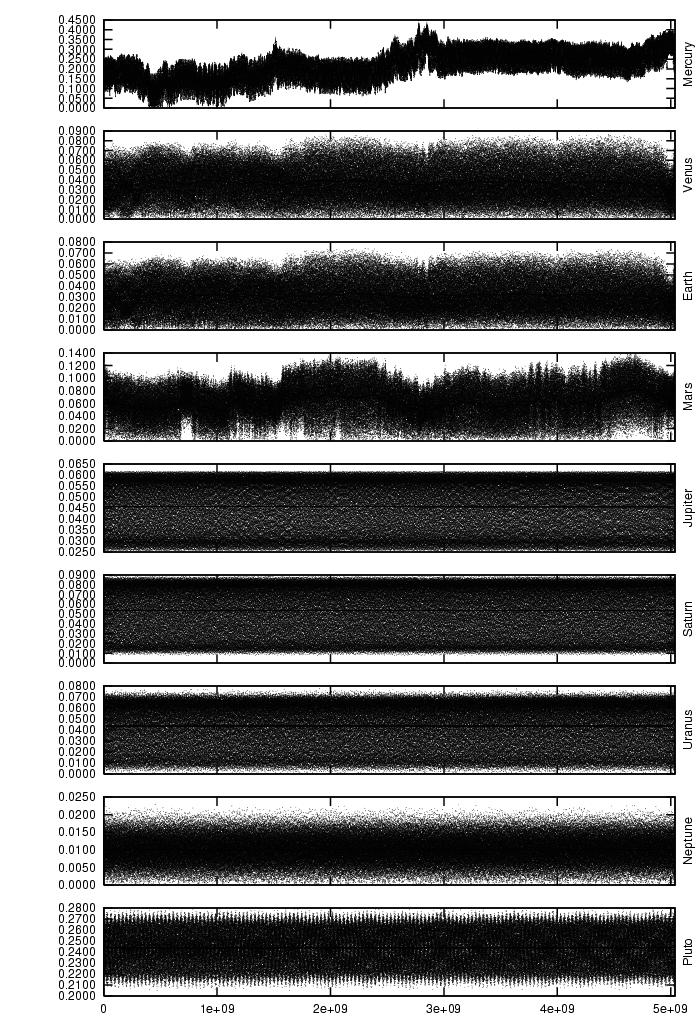

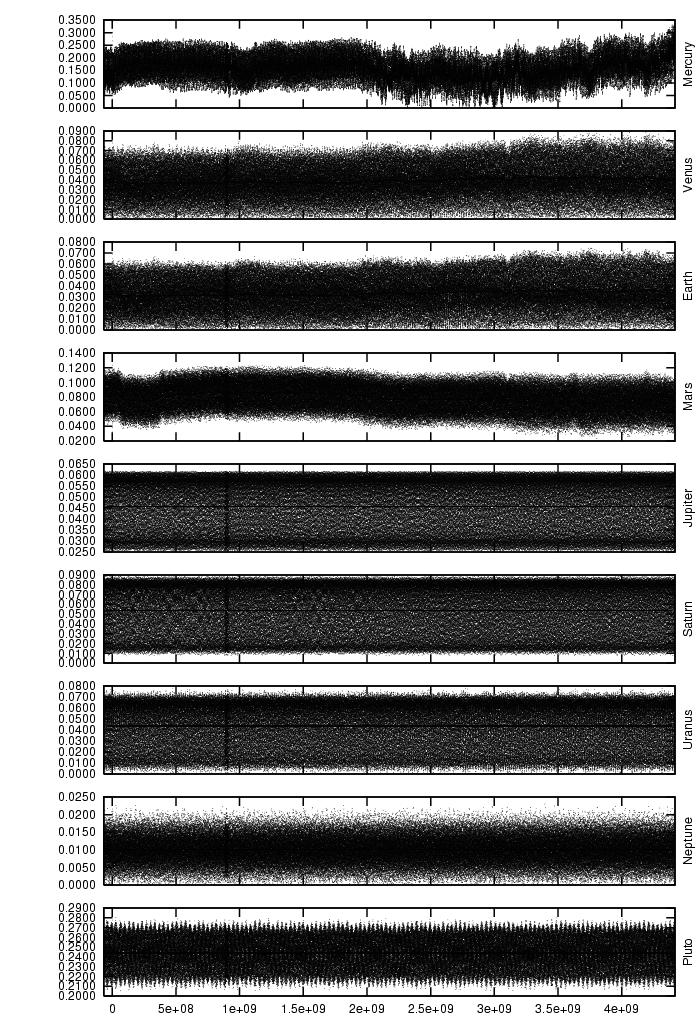

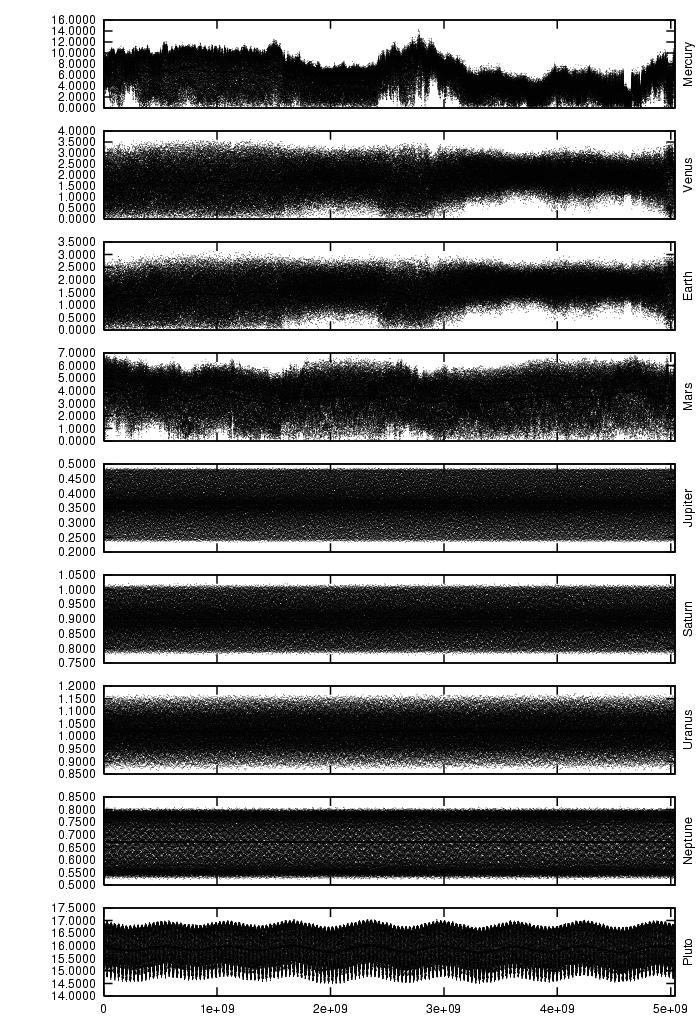

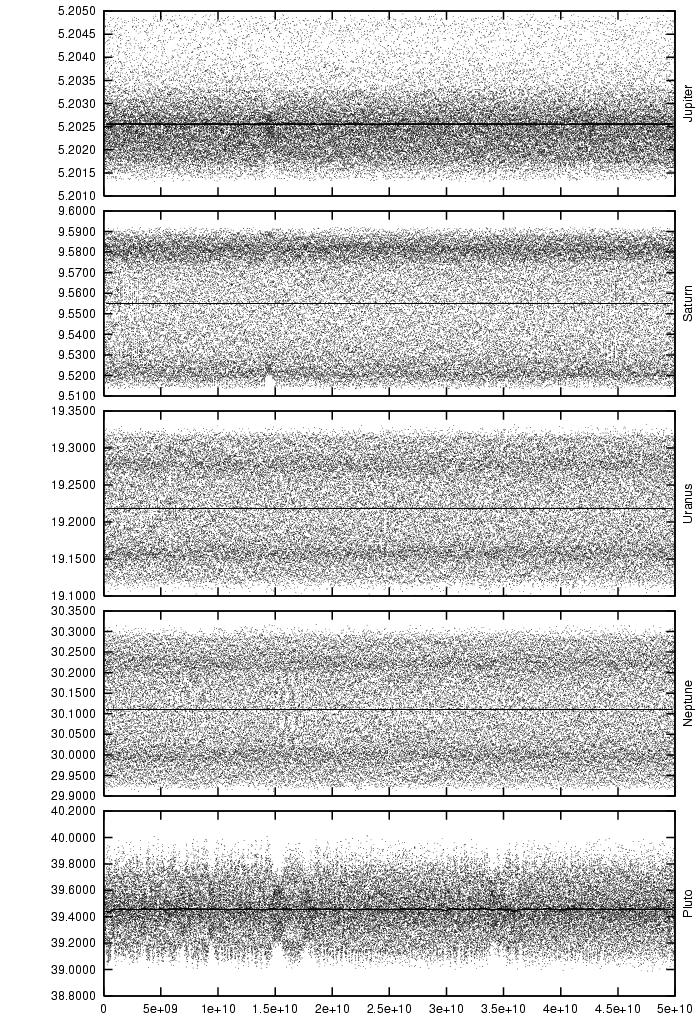

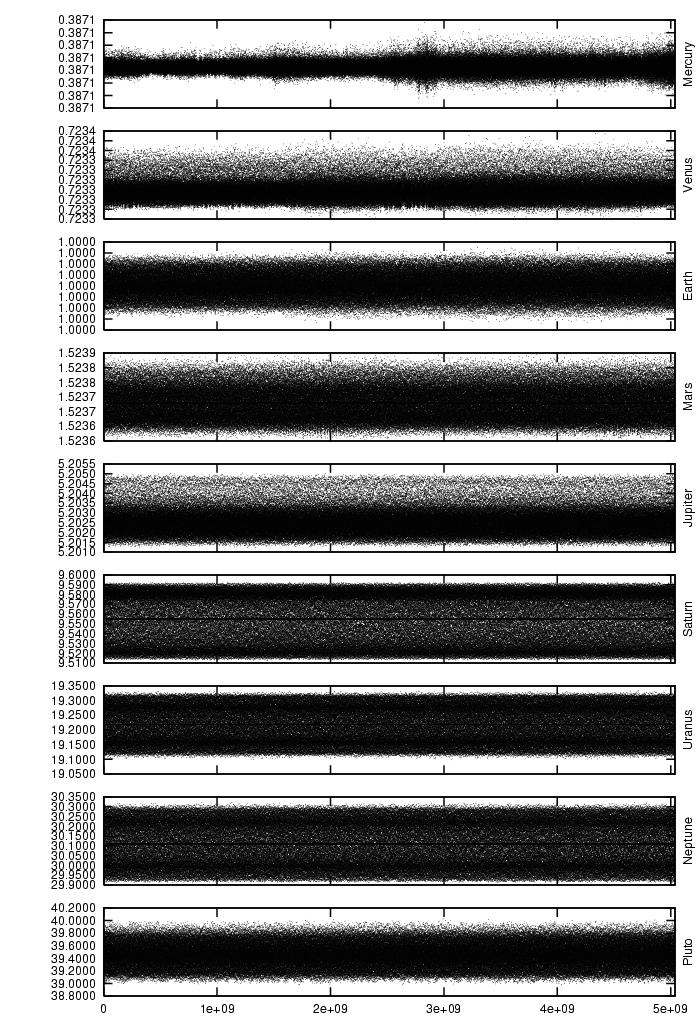

Raw data of each planetary orbital elements (a=semimajor axis,
e=eccentricy, and I=orbital inclination) in each
of our numerical integrations. The horizontal axes denote time whose
unit is Gyr. The unit of a is AU, and that of I is degree.
Note that moving averaged values are plotted by lines together with the
raw orbital elements (dots), though the lines are buried by the dots
in most figures.
N+1
a
e
I
N+2
a
e
I
N+3
a
e
I
N-1
a
e
I
N-2
a
e
I
N-3
a
e
I

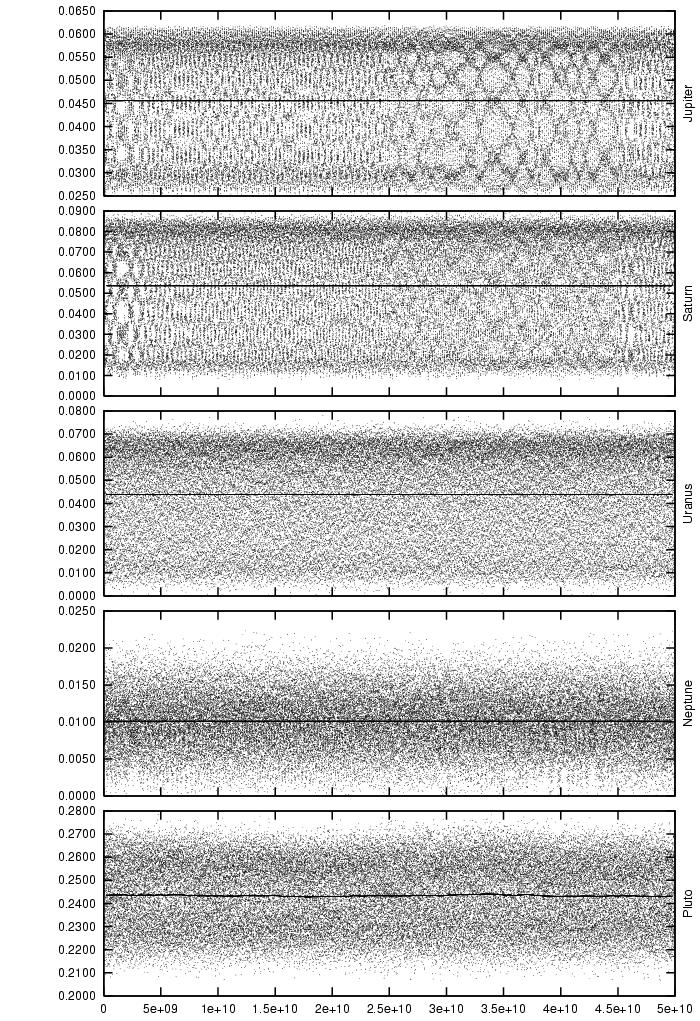

50G+
a
e
I

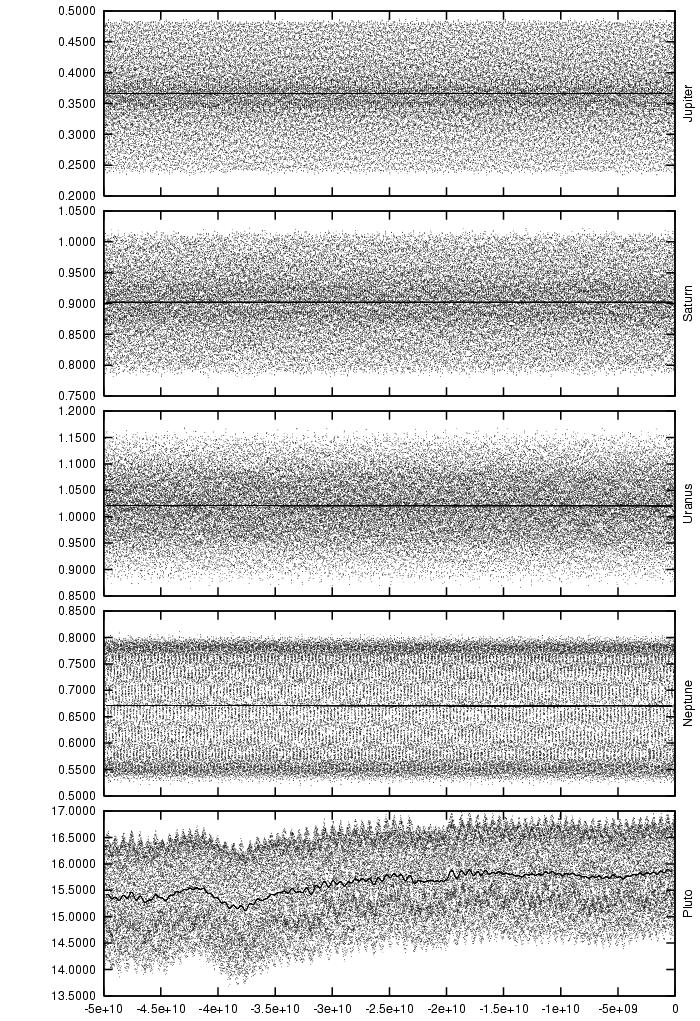

50G-
a
e
I
a
e
I
a
e
I
a
e
I
a
e
I
a
e
I
a
e
I
a
e
I
a
e
I
