Orbital energy and angular momemtum

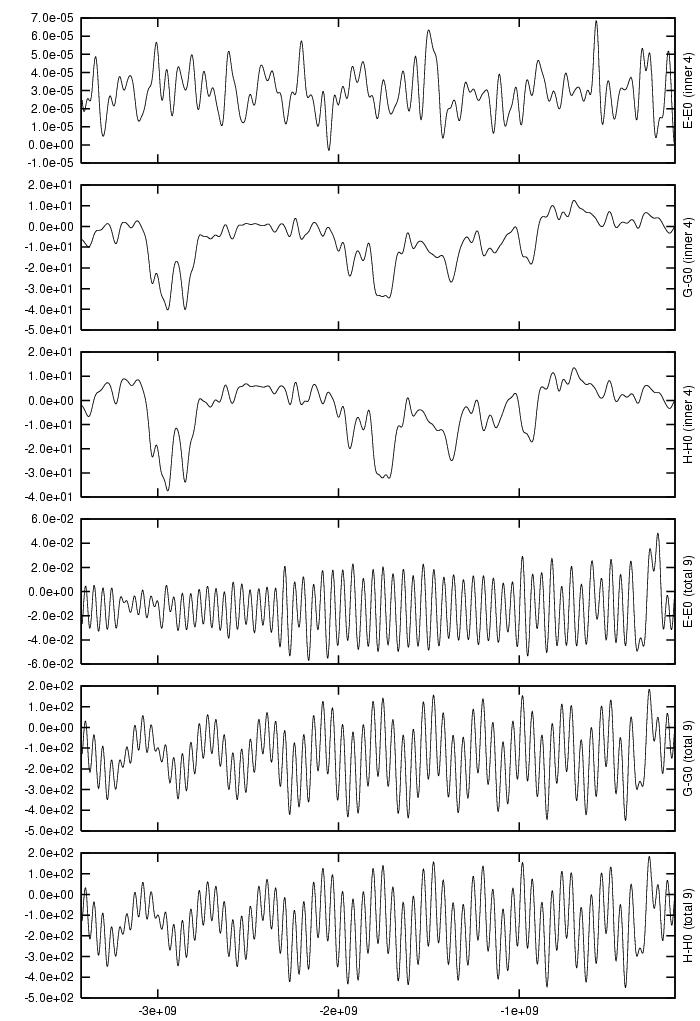

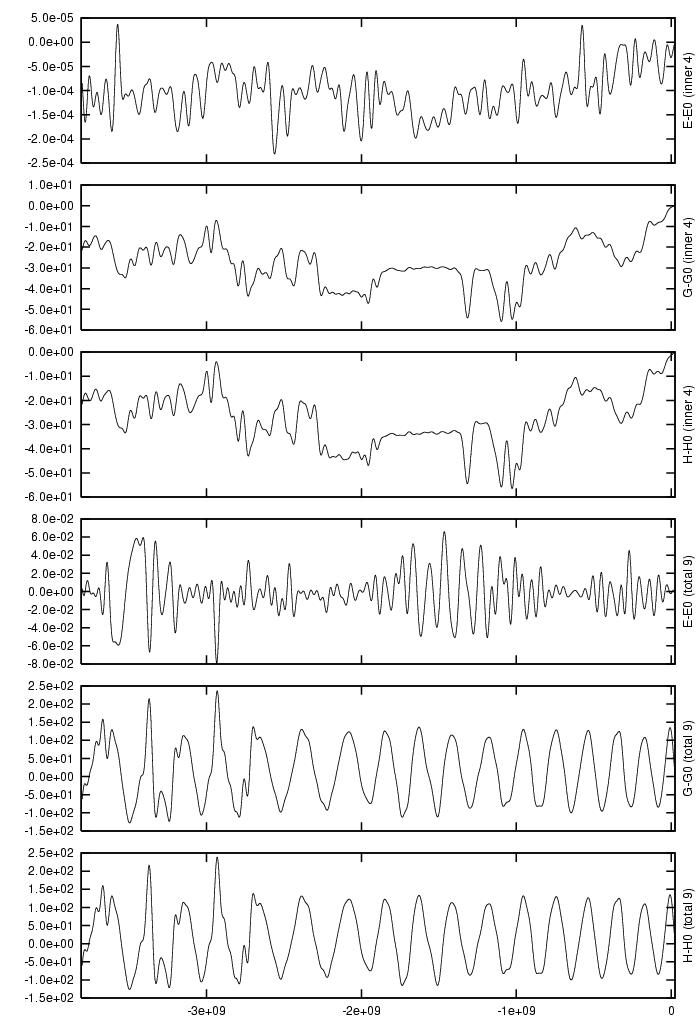

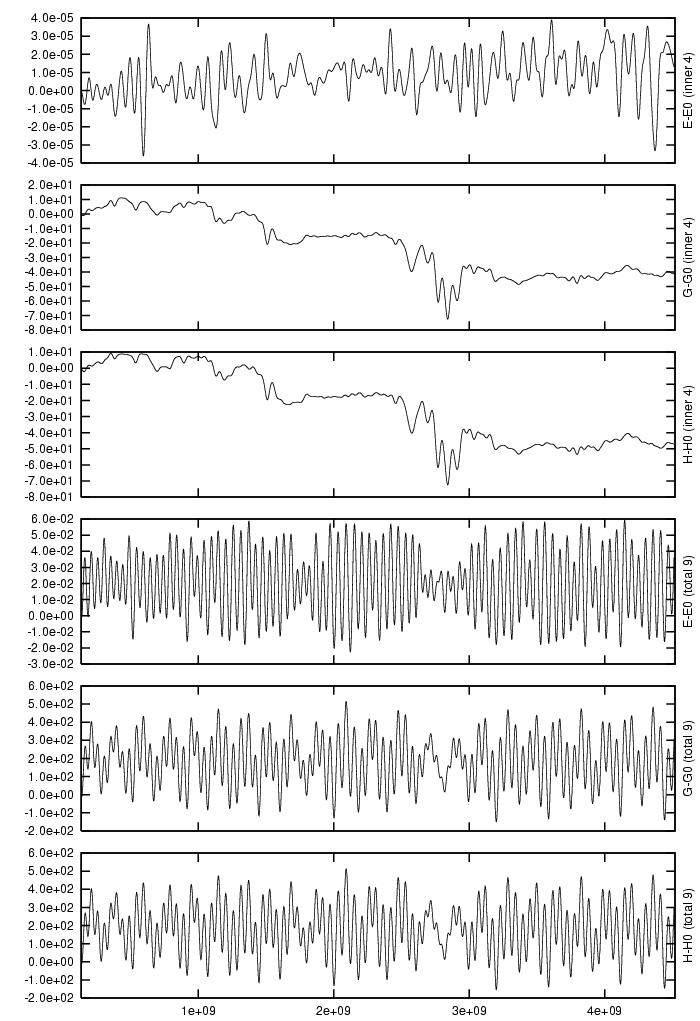

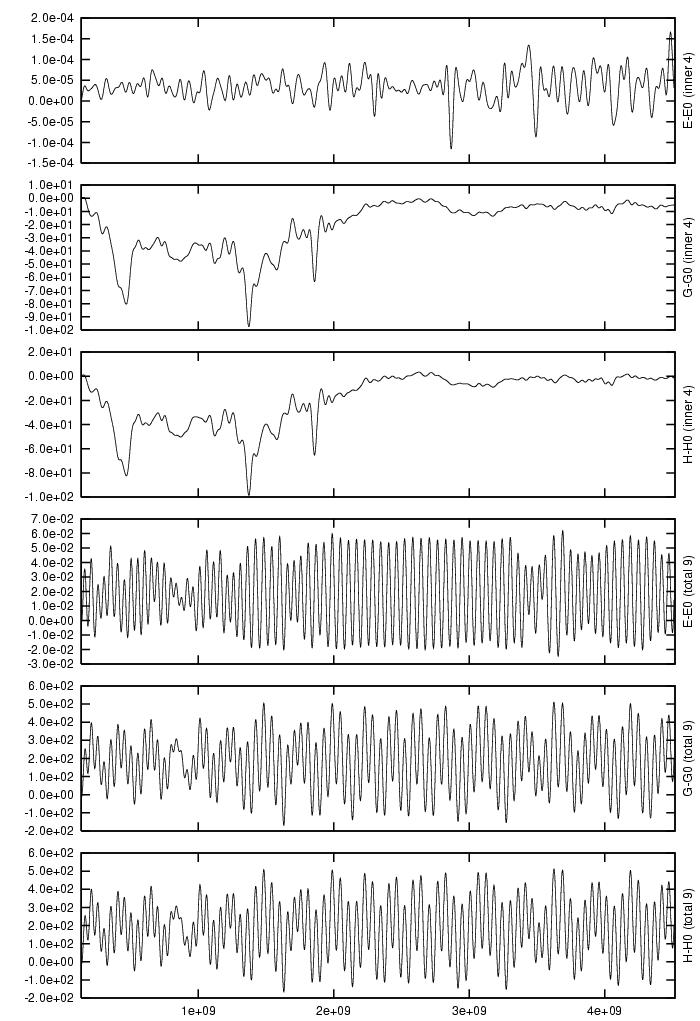

Absolute difference in total energy (E-E_0), angular momentum (G-G_0),
and its vertical component (H-H_0) calculated by the low-pass filtered
orbital elements in each of our integrations.
The upper three panels are for the inner four planets, and
the lower three panels are for the total of nine planets.
The unit of m*(E-E_0) is 10^(-12)*Msun*AU^2/day^(-2),
and that of m*(G-G_0), m*(H-H_0) is 10^(-12)*Msun*AU^2/day^(-1),
where Msun is the Sun's mass.
N+1
N+2
N+3
N-1
N-2
N-3

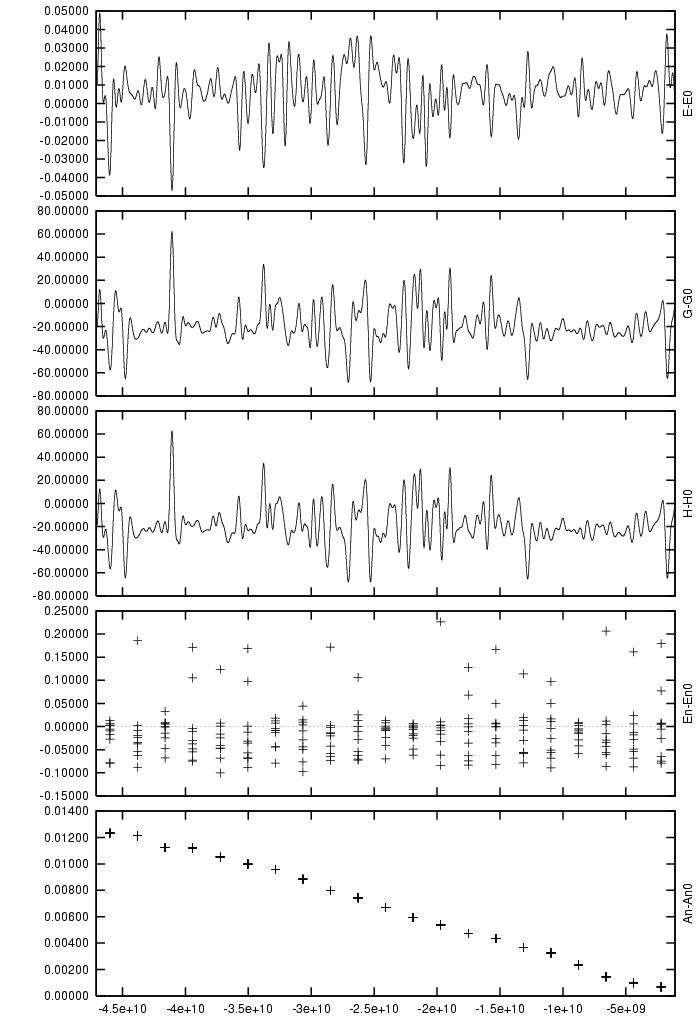

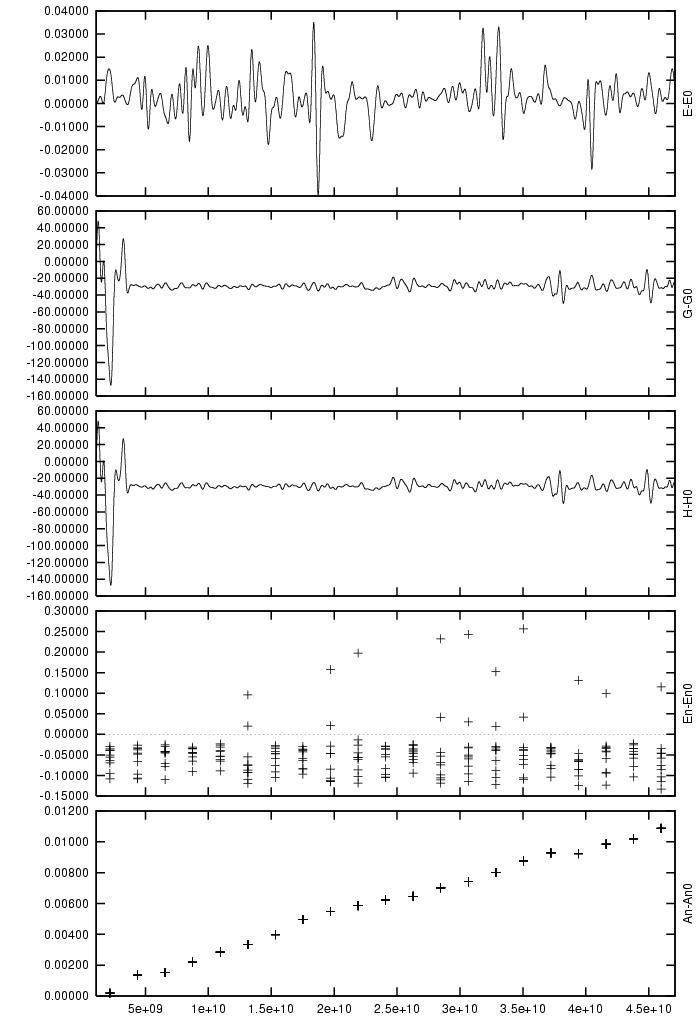

In below figures for F_+/- integrations
only the quantities of total of nine planets are plotted,
together with numerical errors in total energy and angular momentum
in bottom two panels in each figure.
F+
F-
N+1
N+2
N+3
N-1
N-2
N-3
F+
F-
